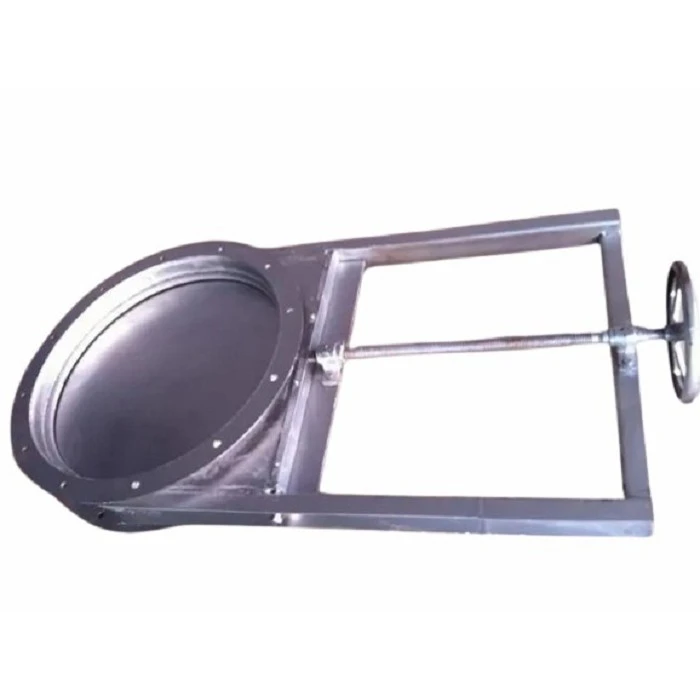

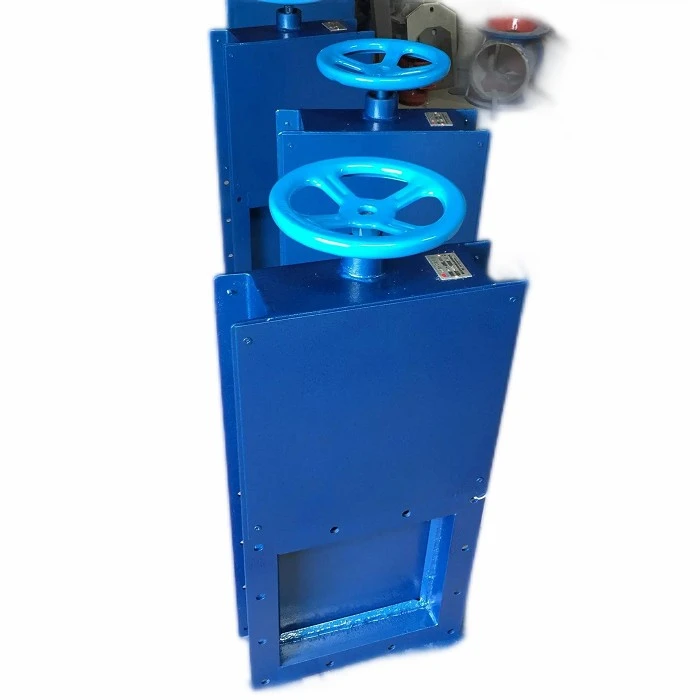

Plate Welded Flat Gate Valve

Price: The price is changing because of material cost and exchange rate. Please give me your contact information, I will update the newest price to you.



Technical Specification
Product name	Rising stem flat gate valve
Design reference	API	ASME
Design standard	API 6D	ASME B16.34
Structural length	API 6D	ASME B16.10
Flanged ends	ASME B16.5、ASME B16.47	ASME B16.5、ASME B16.47
Butt-welding ends	ASME B 16.25	ASME B 16.25
Test & inspection	API 6D	API598
Packing:	To be packed in suitable wooden cases as per client's option or customized
Shipping & Delivery:	20-25 days lead time; deliver by ship from Ningbo port or Shanghai port
Notes: Serial valve connecting flange and butt-welding terminal size can be designed at customers'request. The material of the main parts and sealing surface of the valve can be designed and selected according to the actual working conditions or the special requirements of users.





1. It has the advantages of simple and compact structure, reasonable design, reliable sealing, light and flexible operation, small size, smooth channel, low resistance, easy installation and easy disassembly.

2. When the valve is fully opened, the flow resistance coefficient is very small, and the valve will eliminate the function of the valve disc and the dirt on the sealing surface every time the valve is opened and closed.

3. The packing is made of flexible graphite ring and graphite packing, reliable sealing, light and flexible operation.

4. It is widely used in oil and water steam pipelines such as petrochemical industry and thermal power plants to connect or cut off the intermediate quality of pipelines. The sealing surface of the opening and closing device has compact structure and reasonable design.





• Our service tenet is customer first, service first. We will provide more accurate and efficient manufacturing and service according to customer requirements.
• We have a professional QC team to ensure that the products in Rising stem flat gate valve meet your needs and do better.
• Check raw materials before production at Rising stem flat gate valve.
• Spot checks are carried out during the processing of Rising stem flat gate valve.
• 100% inspection of Rising stem flat gate valve before shipment.
• Provide a one-year service for the products provided by Rising stem flat gate valve to create value for customers.





• We have complete production technology and management.
• As a manufacturer our price is also good.





To be packed in suitable wooden cases as per client's





Q: What are the types of connection between valve stem and valve stem nut?

A: There are many types of connection between the valve stem and the valve stem nut. From the valve stem nut, it is divided into fixed valve stem nut and rotating valve stem nut two categories. From the fixed position of the fixed valve stem nut, it is divided into: the upper valve stem nut fixed on the support; Middle stem nut fixed on valve cover; Lower valve stem nut secured to the closing member. Due to the change of the fixed position of the valve stem nut, it also causes the change of the shape structure of the valve stem nut and the change of other parts of the valve stem.



Q: What are the assembly requirements after valve repair?

A: After the valve is cleaned and repaired, different valves are combined with different forms of coordination (gap coordination, transition coordination, interference coordination), and these valves are connected together in different types of connection forms (key connection, pin connection, thread connection, tooth connection, welding, bonding, etc.) to form a valve with sealing, opening and closing flexible performance. This technology has been operated The process is called the assembly of valves.

There are generally three requirements for the assembly of valves after maintenance.

Conditions for assembly. After all valves are cleaned, inspected, repaired or replaced, their dimensional accuracy, mutual position accuracy, surface roughness, material properties and heat treatment and other mechanical properties shall meet the technical requirements before assembly.

The principle of assembly. When assembling, the first disassembled before the assembly, after the disassembled before the assembly; Find out the nature of the cooperation, do not knock violently; The operation is in the order of first inside and then outside, from left to right and top to bottom; Easy to install, first difficult; First parts, components, mechanisms, and then cover pressure test.

The effect of assembly. Fit properly, connect correctly, complete valve parts, bolt fastening, flexible opening and closing, accurate indication, reliable sealing, suitable for working conditions.



Q: What is the problem of sealing packing in installation?

A: The following ten types of problems are likely to occur in the installation of sealing packing.

The cleaning work is not thorough, the operation is careless, the misuse of tools, that is, the valve stem, gland, stuffing box is not cleaned with oil, and even the debris in the box; The operation is not in order, the holes are filled, no special tools are used, the stuffing is cut with the screwdriver, and the stuffing is installed with the screwdriver.

1. Improper selection of filler, with low generation high, narrow generation wide;

2. The general low pressure packing is used in high temperature and strong corrosive media.

3. The stuffing Angle is wrong, the length is different; The installation in the stuffing box is not smooth and tight.

4. Multi-layer filling v multi-layer connected packing, once pressed, so that the stuffing in the stuffing box is not uniform, there is a gap, after pressing is outside tight and loose, increasing the leakage of the stuffing.

5. Too much packing is installed, causing the packing gland to sit on top of the packing box, causing displacement and chafing the valve stem.

6. The pre-tightening gap between the packing gland and the stuffing box is too small, if the packing leaks in use, the packing gland can not be tightened again.

7. The packing cover is too tight on the packing, which increases the wear of the valve stem and increases the opening and closing force of the valve stem.

8. The packing gland is skewed, and the tightness is uneven.

9. The gap between the valve stem and the packing gland is too small, and the mutual friction will wear the valve stem. Defects such as distortion, scratches and tensile deformation occur during the installation of the ring.

10. The above problems that are easy to appear in the installation of sealing filler are mainly caused by the operator's lack of understanding of the importance of sealing filler, the need for quick fear of trouble, and the violation of operating procedures.
